GENERAC 100A AUTOMATIC TRANSFER SWITCH 1PH 50HZ

DESCRIPTION

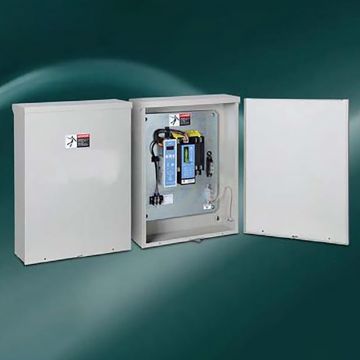

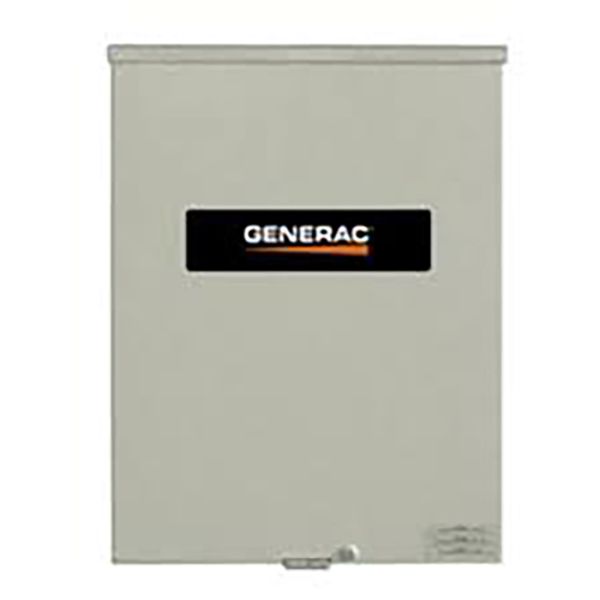

Generac Transfer Switches are available with aluminum enclosures for 100A. The enclosure is certified to IEC IP54. The controller at the generator senses and controls the timing, exercising and transfer commands.

Features

• Double Throw contactor, certified to the transfer switch standard IEC 60947-6-1 with electrically operated, mechanically held contacts for fast, positive connections.
• High endurance, interlocked contactor, 100% rated for both inductive and resistive loads.
• 160 millisecond transfer time.
• Single coil design.
• Main contacts are silver alloy to resist welding, sticking or pitting.
• Arc chutes designed for rapid dividing and arc splitting for faster quenching.
• Limited 3 Year Warranty.

Specifications

• Rated Voltage: 110/220 VAC
• Rated Current: 100A
• Rated Frequency: 50Hz
• Phase: 1
• Load Transition Type (Automatic): Open Transition
• Enclosure Type: IP54 & NEMA 3R
• Withstand Rating (Amps): 10,000
